Future-proof and ready for new use cases such as 5G network slicing, SD-WAN, 4K/8K cameras and AR/VR

High-speed 5G NR and 4G LTE-Advanced Pro Cat 20 dual connectivity CBRS, C-band, FirstNet Capable™ cellular radio

Enterprise-grade Wi-Fi 6 and dual 2.5 Gigabit Ethernet

Active PoE+ switch or DC IN for primary and backup power

Extremely resilient cellular connection through Digi’s patented SureLink®, VRRP+ protocol and dual SIM slots

Extended operating temperature range for wider use-cases

Standards-based Power over Ethernet simplifies installation

Multiple mounting options and accessories

Serial port for remote, out-of-band management

Full-featured enterprise and industrial cellular routing platform

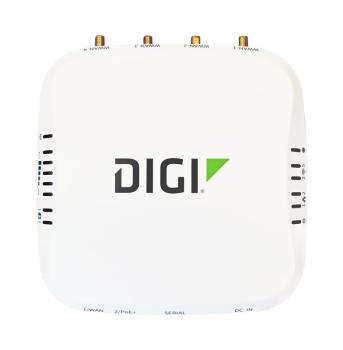

DIGI EX50-Global, 5G NR Sug-6 GHz, GNSS, WiFi, dual 2.5GbE access

0 Reviews | Write A Review

CELLULAR CONNECTIVITY**

5G NR Bands: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48 CBRS, n66, n71, n77 C-band, n78, n79 4G LTE-ADVANCED PRO Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46 LAA, B48 CBRS, B66, B71 3G HSPA+ Bands: B1, B2, B4, B5, B6, B8, B9, B19 ANTENNA CONNECTORS (4) 50 Ω SMA (center pin: female) SIM SLOTS (2) Mini-SIM (2FF); software selectable, hardware switchable; SIM slot cover plate

SOFTWARE AND MANAGEMENT*

SOFTWARE Digi Accelerated Linux (DAL OS); secure, reliable, intelligent, customizable REMOTE MANAGEMENT Digi Remote Manager; security, management, updates, alerts, scheduling and intelligence LOCAL MANAGEMENT Web Interface (HTTPS); Command Line Interface (SSH, serial port)

PERFORMANCE

ETHERNET THROUGHPUT 2.5 Gbps CELLULAR THROUGHPUT 1.4 Gbps IPSEC VPN THROUGHPUT 500 Mbps VPN TUNNELS 10 tunnels CLIENT COUNT 256 clients (typical)

PROCESSOR

APPLICATION PROCESSOR ARM® Cortex®-A53, 1.8 GHz, quad-core, 64-bit MEMORY 512 MB RAM, 512 MB flash

ETHERNET

PORTS (2) RJ-45; 10/100/1000/2500 Mbps (auto-sensing)

WI-FI

RADIOS Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous, 2x2 MIMO; 2.4 GHz: 802.11b/g/n/ax; 2.4 GHz and 5 GHz: 802.11a/n/ac/ax ANTENNAS Integrated 2x2 MIMO, 2.4 with 8 dBi gain, 5 GHz with 5 dBi gain SECURITY Open, Enhanced Open, WPA, WPA2, WPA3; Personal, Enterprise MODES (4) Wi-Fi access points; (2) Wi-Fi clients; (256) Wi-Fi users (typical)

SERIAL

PORTS (1) RS-232 (RJ-45); Cisco straight-through pinout; for out-of-band management of network appliances and servers

PHYSICAL

DIMENSIONS (L x W x H) 158 mm x 158 mm x 35 mm (6.2 in x 6.2 in x 1.4 in) WEIGHT 600 g (21 oz) STATUS LEDs (14) total for easy visual troubleshooting; Power, LAN, WAN, Wi-Fi 2.4/5, Online, Cellular Signal, Cellular Service, SIM 1/2 ENCLOSURE Hybrid (die-cast aluminum + ABS plastic); Kensington Security Slot

POWER REQUIREMENTS

DC BARREL INPUT 19 VDC / 2.5 A barrel connector, 2.5 mm pin, center-positive POWER OVER ETHERNET Standards-based, IEEE 802.3at, PoE+ (25.5 W) POWER CONSUMPTION 8 W (idle), 15 W (typical), 25 W (maximum)

ENVIRONMENTAL

OPERATING TEMPERATURE -30 °C to 60 °C (-22 °F to 140 °F) with Power over Ethernet or industrial-rated power supply; 0 °C to 40 °C (32 °F to 104 °F) with included commercial-rated power supply RELATIVE HUMIDITY 5% to 95% (non-condensing)

APPROVALS**

CELLULAR Visit product certifications for latest approvals and updates EMISSIONS / IMMUNITY CE; RED; FCC Part 15 Subpart B; CAN ICES-003 SAFETY IEC62368-1, CB, EN62311

WARRANTY***

PRODUCT WARRANTY 1-year
