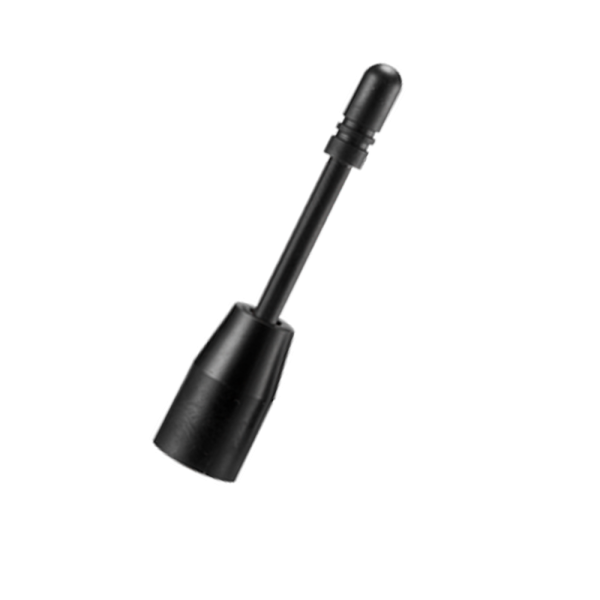

Taoglas FW.79.M6.F ISM/LoRa Flexible Whip Antenna
Taoglas FW.79.M6.F ISM/LoRa Flexible Whip Antenna
Compact flexible whip antenna designed for 700-900 MHz ISM/LoRa applications. Features an M6 female connector and IP67-rated enclosure. Ideal for mission-critical PMR/LMR, emergency services, military, and transportation communications.
Overview
The FW.79.M6.F is a high-performance flexible whip antenna from Taoglas's Meteor Series, engineered for ISM and LoRa applications in the 700-900 MHz frequency range. With its compact form factor and robust IP67-rated polyurethane housing, this antenna is built to withstand harsh environmental conditions.
Key Features
IP67 waterproof rating for outdoor deployment. M6 female terminal mount connector. Linear polarization with 1.72 dBi gain. VSWR less than 2:1 across operating band. Operating temperature range of -40 to 85 degrees Celsius. RoHS compliant.
Applications
Public Mobile Radio (PMR) and Land Mobile Radio (LMR). Emergency services communications. Military and defense systems. Transportation and fleet management. Smart metering and SCADA systems. LoRa and IoT deployments.
Device Specifications:
- Frequency Range: 700-900 MHz (ISM/LoRa).
- Impedance: 50 Ohm.
- Peak Gain: 1.72 dBi.
- VSWR: Less than 2:1 across operating band.
- Polarization: Linear.
- Connector: M6 Female terminal mount.
- IP Rating: IP67 waterproof rated enclosure.
- Housing Material: Polyurethane.
- Operating Temperature: -40°C to 85°C.
- Orientation: Straight.
- Compliance: RoHS compliant.
Weight and Dimensions:
- 10.6 grams.
- Ø14 mm diameter.
- 65.8 mm height.
All functionality, features, specifications and other product information provided are subject to change without notice.
