WIRELESS INTERFACES CELLULAR / WWAN 5G NR SUB-6 GHZ QUALCOMM SDX72, COMPLIANT WITH 3GPP RELEASE 17, WITH LTE-ADVANCED PRO FALLBACK5G NR bands: n2, n5, n7, n12, n13, n14, n25, n26, n29, n30, n38, n41, n48 (CBRS), n66, n70, n71, n77, n78;Power Class 1.5 (29 dBm): n38, n41, n77, n78;4G LTE bands: B2, B4, B5, B7, B12, B13, B14 (FirstNet®), B17, B25, B26, B29, B30, B38, B41, B42, B43, B48 (CBRS), B66, B71

CONNECTORS (4) 50 Ω SMA (center pin: female)SIM SLOTS / ESIM SUPPORT(2) Nano-SIM (4FF) slots; soldered MFF2 Digi eSIM with eUICC (SGP.32) for remote provisioning and carrier switching (user selectable between one of the 4FF and eSIM slots); Dual SIM Dual Standby (DSDS) support

SIM SECURITY SIM slot cover plate with security screws included

‍WI-FI

‍TECHNOLOGY Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) radio supporting tri-band dual-concurrent 2.4 and 5/6 GHz operation

SECURITY WPA2 and WPA3 Personal and Enterprise, Open and Open Enhanced security standardsHOTSPOTCaptive portal with customizable splash page, terms and conditions, shared password, user-specific password, RADIUS authenticationTHIRD-PARTY SERVICESContent filtering, embedded advertisingMODESUp to 8 access points and up to 64 clientsCONNECTORSInternal antennas

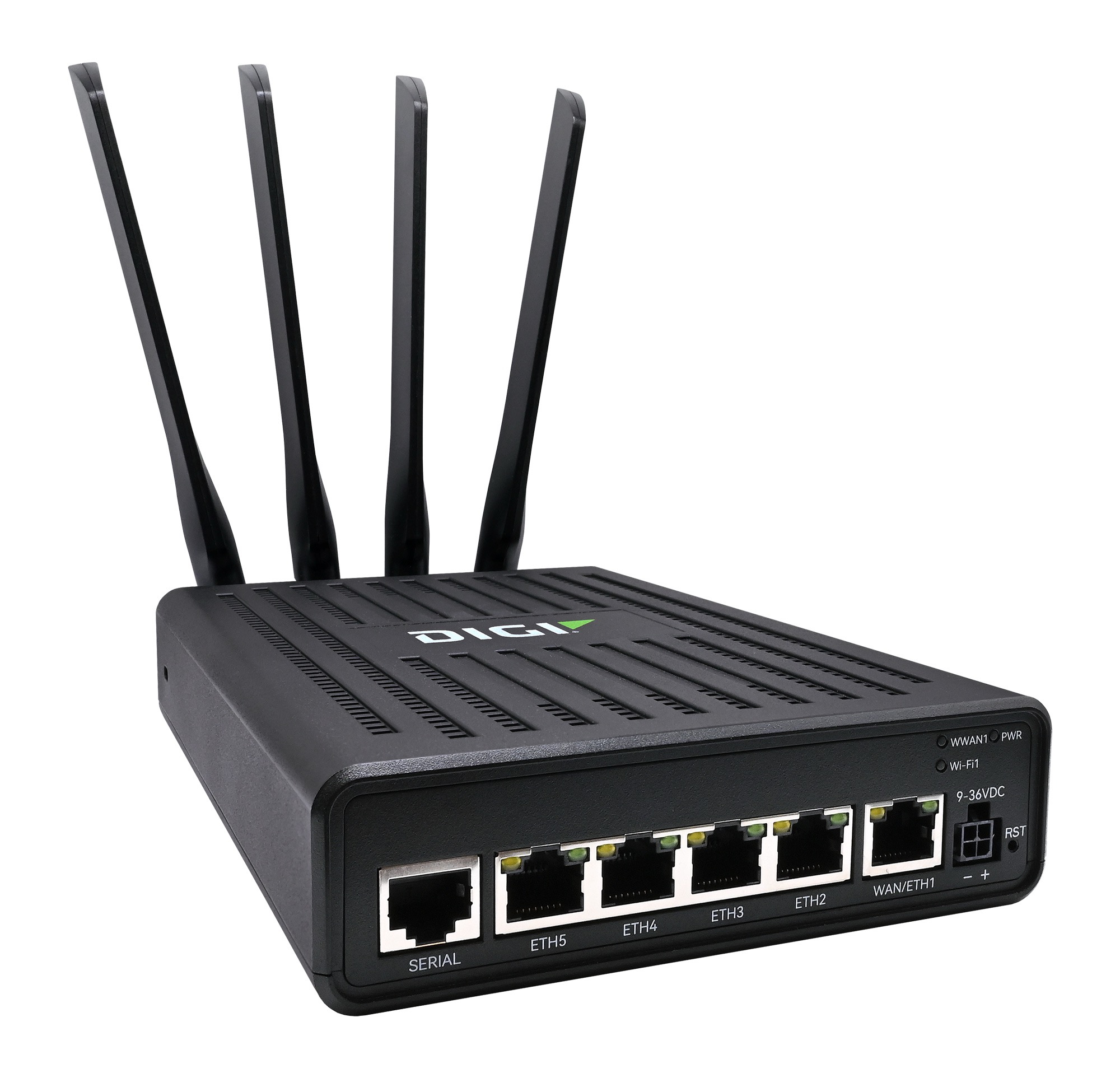

‍WIRED INTERFACES ETHERNET PORTS / CONNECTOR(1) WAN 2.5 GbE (4) LAN 1 GbE; all ports WAN/LAN switchable

‍SERIAL PORTS / CONNECTOR(1) EIA RS-232 DTE / RS-485, 10-pin RJ-50; for out-of-band management of connected network appliances and servers

‍USB PORTS / CONNECTOR(1) USB 3.1 with DRD (Dual-Role Data) / DRP (Dual-Role Power) support, Type-C

‍SOFTWARE AND MANAGEMENT REMOTE MANAGEMENT Digi Remote Manager (cloud based); SNMP v2c/v3 (user installed/managed)LOCAL MANAGEMENTWeb UI (HTTPS); CLI (SSH, serial)MANAGEMENT TOOLS SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog

‍MEMORY RAM / FLASH2 GB / 8 GB

‍POWER REQUIREMENTS POWER INPUT9 – 36 VDC, 4-pin Molex power input connector; AC power supply included (North America) or USB-C power input with locking connectionPOWER CONSUMPTION6 W typical (idle); 23 W peak

‍PHYSICAL DIMENSIONS 192 mm x 133 mm x 38 mm (7.56 in x 5.24 in x 1.5 in)WEIGHT0.74 kg (1.6 lb)STATUS LEDSPower, WWAN, Wi-Fi, LAN/WAN statusENCLOSURE / RATINGABS plastic indoor enclosure

‍ENVIRONMENTAL OPERATING TEMPERATURE−30 °C to 60 °C (−22 °F to 140 °F)STORAGE TEMPERATURE−40 °C to 85 °C (−40 °F to 185 °F)RELATIVE HUMIDITY5% to 95% (non-condensing)

‍APPROVALS CELLULAR PTCRB, AT&T, T-Mobile, Verizon; visit digi.com/resources/certifications for latest approvals and updatesSAFETY / SECURITYIEC 62368-1, EN 62311, FIPS 140-3EMISSIONS / IMMUNITY FCC Part 15 Class B, ICES-003

‍PRODUCT WARRANTY Limited lifetime
